CKJ85-SC, CKJ96-SC

型号:

关键词:

所属分类:

产品描述

Brief product description and advantages
shielded control cable
1: XLPE insulated, 150/250V,control cable
2: armoured cable, flame retardant
3: SHF1,SHF2 sheath

ZhongDa Shielded Control Cable
Model Shielded Control Cable
Sheath SHF1 or SHF2
2 cores to 37 cores
Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes
Type  150/250V control marine cable
Conductor  copper conductor
Screen or Armor  tinned copper wire braided or galvanized steel wire braided
Color   black
Standards applied  IEC60092
Operating temperature -15℃ to +90℃
Certificate  ABS,CCS,GL,KR,LR,NK,RS
Model Number CKJ85 86 95 96 SC
Remark  shielded control cable
Voltage Grade  150/250V

The moQ is 200
FOB price 0.99-99
Supply capacity 100
The delivery period is 7-30 days
Fumigation Wooden Drum, 200M/ drum, 500M/ drum

shielded control cable

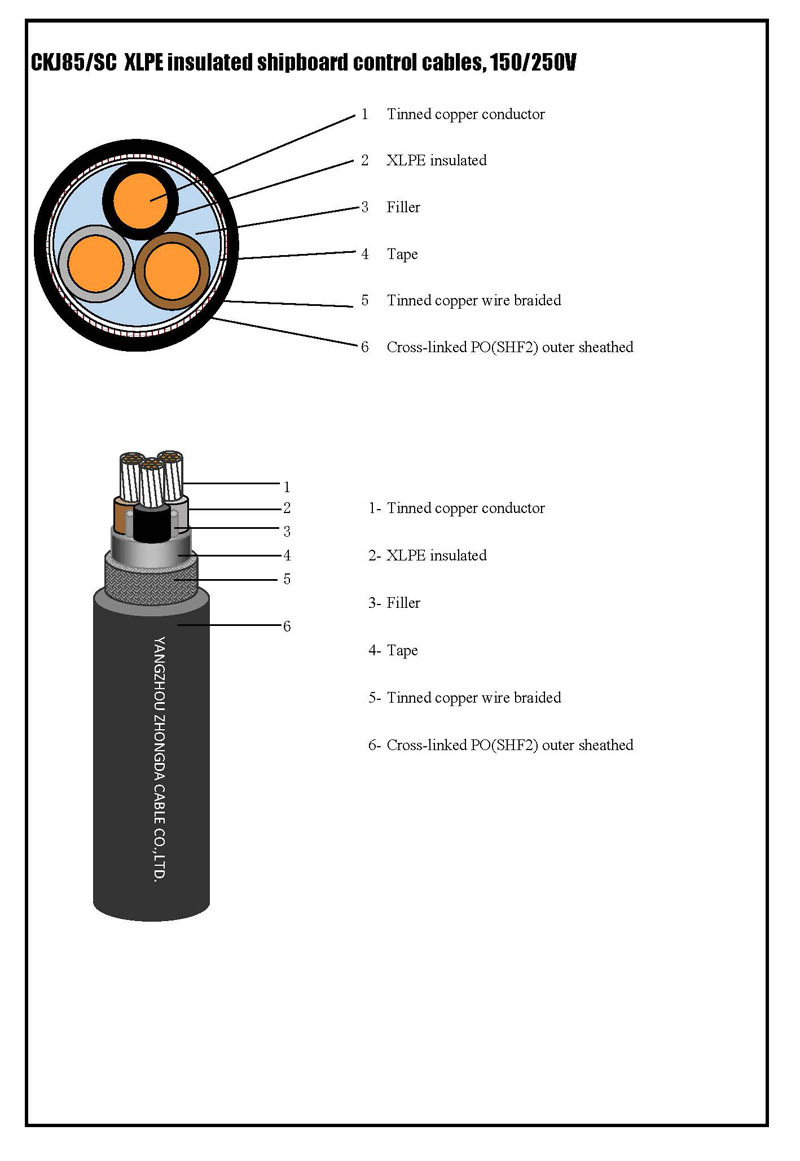

CKJ85/SC
CKJ95/SC
CKJ86/SC

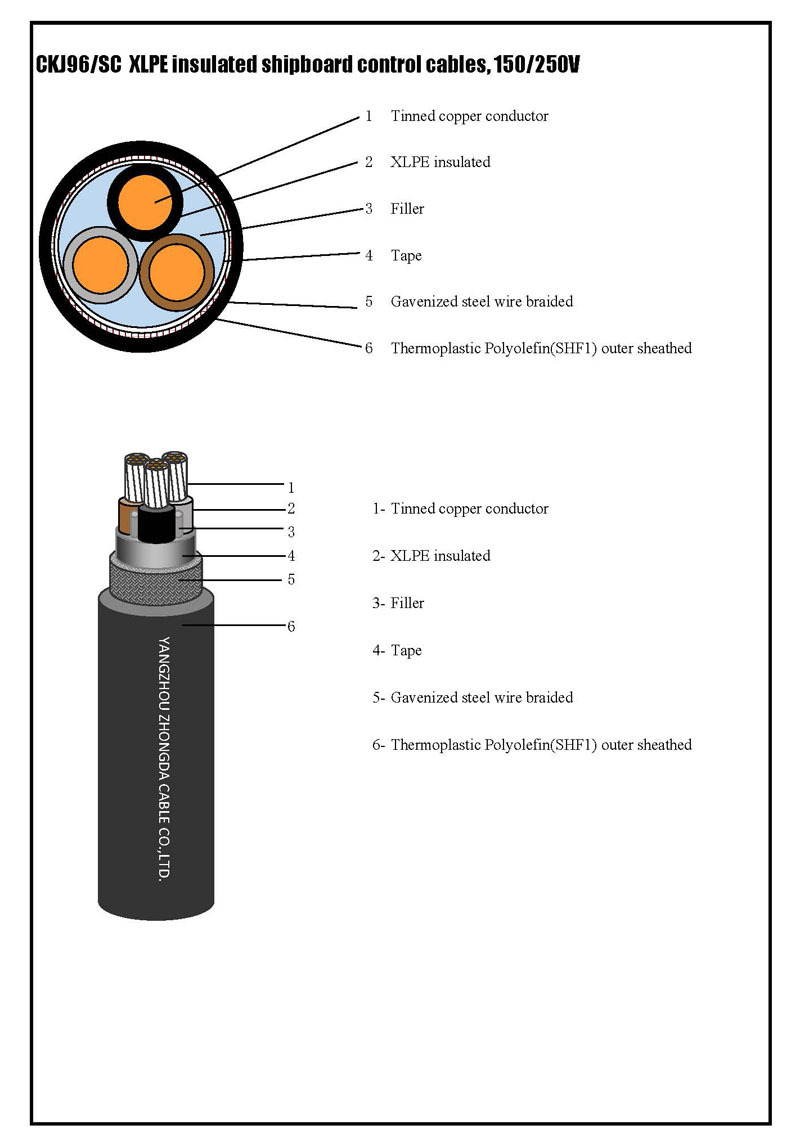

CKJ96/SC
Shipboard control cable



Construction

Code Letter

Material or requirements

Shipboard control cable

CK

-

Conductor (1)

-

Stranded or tinned copper wire

Insulation (2)

J

Cross-linked polyethylene (XLPE)

Filler and tape (3)

-

Non-hygroscopic material

Screen or Armor (4)

8、9

Tinned copper wire braided or Galvanized steel wire braided

Outer sheath (5)

5、6

Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO)

Flame retardant

S

Bunched flame retardant

Low smoke and halogen free

C

Low smoke, halogen free and low toxicity

Standards applied
Construction:IEC60092-376
Conductor:IEC60228 Class 2, Class 5
Insulation:IEC60092-351
sheathed:IEC60092-359
Flame Retardant:IEC60332-3-22
Smoke Density:IEC61034
Halogen Index:IEC60754

Cores identification
Print white number on black core

Outer sheath color
Black

Main characteristics
Operating temperature:-15℃~+90℃
Rated voltage:150/250V
Test voltage:1.5kV/5min
Flame spread test on bunched cable: Cat. A
Smoke density of completed cable: ≥60%

Application
The cable is mainly intended for shipboard and offshore building of control system.
