CKJV82-NSA, CKJPJ85-NSC

型号:

关键词:

所属分类:

产品描述

Brief product description and advantages
1: XLPE insulated, 150/250V,control cable
2: armoured cable, fire resistant
3: SHF1,SHF2 PVC inner and outer sheath

Brand ZhongDa
Model Control Marine Cable Fire Resistant
Sheath SHF1 or SHF2 or PVC
2 cores to 37 cores
Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes
Type  150/250V control marine cable
Conductor  tinned copper or bare copper
Screen or Armor  tinned copper wire braided or galvanized steel wire braided
Color   black
Standards applied  IEC60092
Operating temperature -15℃ to +90℃
Certificate  ABS,CCS,GL,KR,LR,NK,RS

The moQ is 200
FOB price 0.99-99
Supply capacity 100
The delivery period is 7-30 days
Fumigation Wooden Drum, 200M/ drum, 500M/ drum

CKJV82/NSA
CKJV92/NSA
CKJPJ85/NSC
CKJPJ95/NSC
CKJPF86/NSC
CKJPF96/NSC

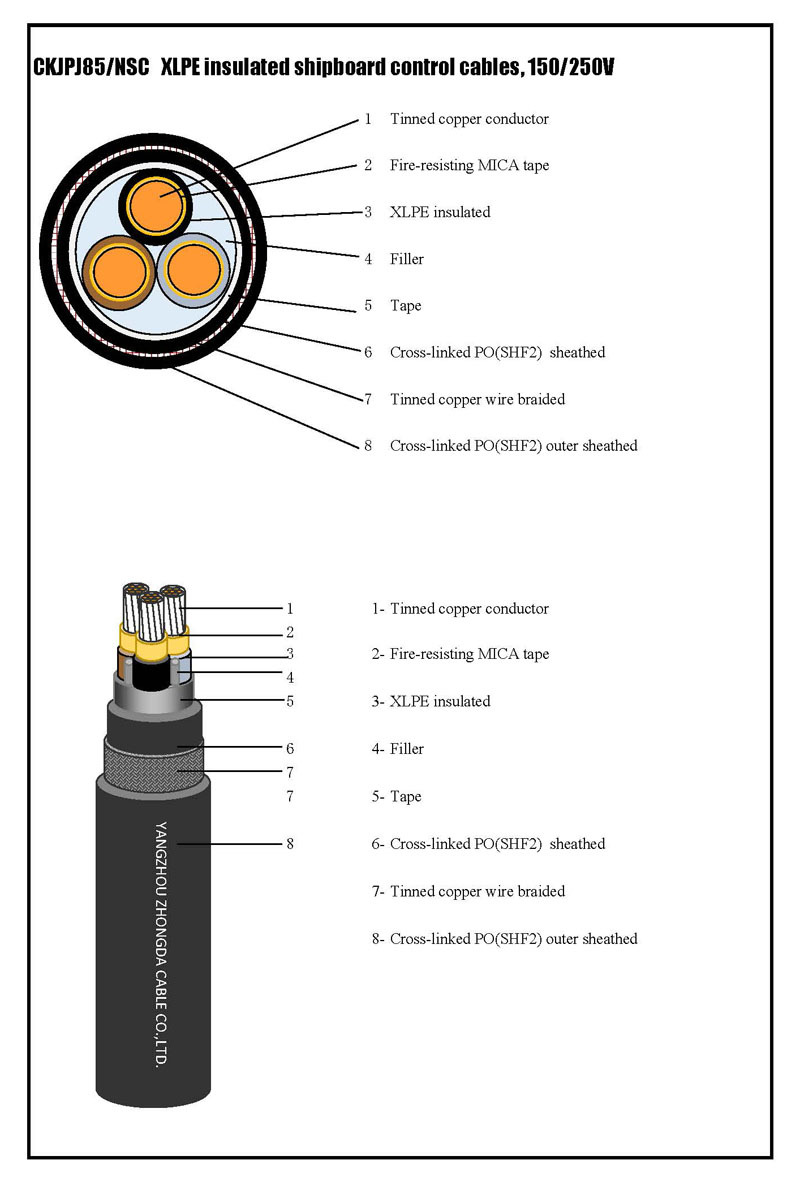

Construction

Code Letter

Material or requirements

Shipboard control cable

CK

-

Conductor (1)

-

Stranded or tinned copper wire

Insulation (2)

J

Cross-linked polyethylene (XLPE)

Filler and tape (3)

-

Non-hygroscopic material

Inner sheath (4)

PJ or PF or V

Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO) or  Polyvinyl chloride (PVC)

Screen or Armor (5)

8、9

Tinned copper wire braided or Galvanized steel wire braided

Outer sheath (6)

5、6、2

Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO) or Polyvinyl chloride (PVC)

Fire resistant

N

Fire resistant

Flame retardant

S

Bunched flame retardant

Low smoke and halogen free

A

Smoke, halogen and toxicity

Low smoke and halogen free

C

Low smoke, halogen free and low toxicity

Standards applied
Construction:IEC60092-376
Conductor:IEC60228 Class 2, Class 5
Insulation:IEC60092-351
sheathed:IEC60092-359
Flame Retardant:IEC60332-3-22
Fire resistant: IEC60331-1/2/21
Halogen Index:IEC60754

Cores identification
Print white number on black core

Outer sheath color
Black

Main characteristics
Operating temperature:-15℃~+90℃
Rated voltage:150/250V
Test voltage:1.5kV/5min
Flame spread test on bunched cable: Cat. A
Smoke density of completed cable: ≥60%

Application
The cable is mainly intended for shipboard and offshore building of control system.
