产品描述

Brief product description and advantages

braid control cable

1: XLPE insulated, 150/250V,control cable

2: armoured cable, flame retardant

3: SHF1,SHF2 PVC inner and outer sheath

Brand ZhongDa Braid Control Cable

Model BrAID Control Cable

Sheath SHF1 or SHF2 or PVC

2 cores to 37 cores

Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes

Type braid control cable

Conductor copper conductor

Screen or Armor tinned copper wire braided or galvanized steel wire braided

Color black

Standards applied IEC60092

Operating temperature -15℃ to +90℃

Certificate ABS,CCS,GL,KR,LR,NK,RS

Model Number CKJV82 CKJPJ85 CKJPF86 SC

Remark braid control cable

Voltage Grade 150/250V

The moQ is 200

FOB price 0.99-99

Supply capacity 100

The delivery period is 7-30 days

Fumigation Wooden Drum, 200M/ drum, 500M/ drum

braid control cable

CKJV82/SA

CKJV92/SA

CKJPJ85/SC

CKJPJ95/SC

CKJPF86/SC

CKJPF96/SC

Shipboard control cable

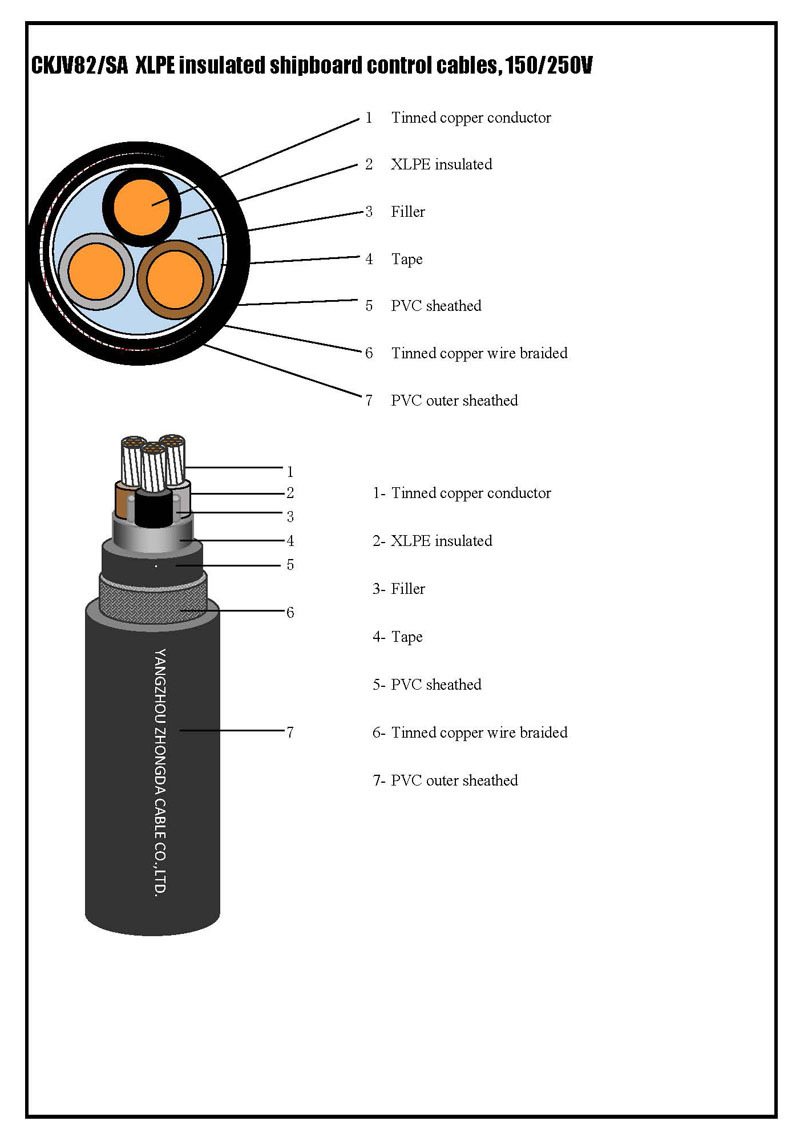

Construction	Code Letter	Material or requirements
Shipboard control cable	CK	-
Conductor (1)	-	Stranded or tinned copper wire
Insulation (2)	J	Cross-linked polyethylene (XLPE)
Filler and tape (3)	-	Non-hygroscopic material
Inner sheath (4)	PJ or PF or V	Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO) or Polyvinyl chloride (PVC)
Screen or Armor (5)	8、9	Tinned copper wire braided or Galvanized steel wire braided
Outer sheath (6)	5、6、2	Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO) or Polyvinyl chloride (PVC)
Flame retardant	S	Bunched flame retardant
Low smoke and halogen free	A	Smoke, halogen and toxicity
Low smoke and halogen free	C	Low smoke, halogen free and low toxicity
