Brief product description and advantages
control cable manufacturers
1: XLPE insulated, 150/250V,control cable
2: unarmoured cable, fire resistant
3: SHF1,PVC sheath
ZhongDa Control Cable Manufacturers
Model Control Cable Manufacturers
Sheath SHF1 or PVC
2 cores to 37 cores
Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc
Custom attributes
Type control cable manufacturers
Conductor copper conductor
Screen or Armor /
Color black
Standards applied IEC60092
Operating temperature -15℃ to +90℃
Certificate ABS,CCS,GL,KR,LR,NK,RS
Model Number CKJV CKJPF NSC
Remark control cable manufacturers
Voltage Grade 150/250V
The moQ is 200
FOB price 0.99-99
Supply capacity 100
The delivery period is 7-30 days
Fumigation Wooden Drum, 200M/ drum, 500M/ drum
control cable manufacturers

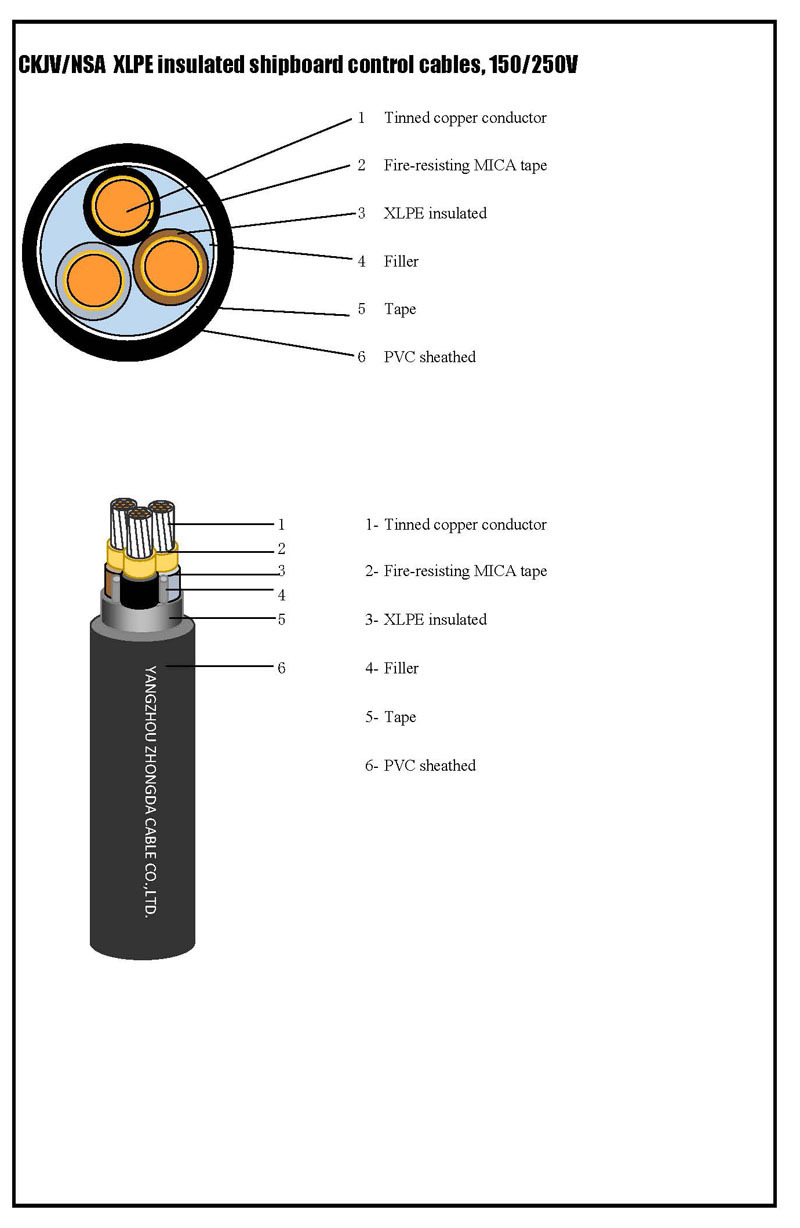

CKJV/NSA

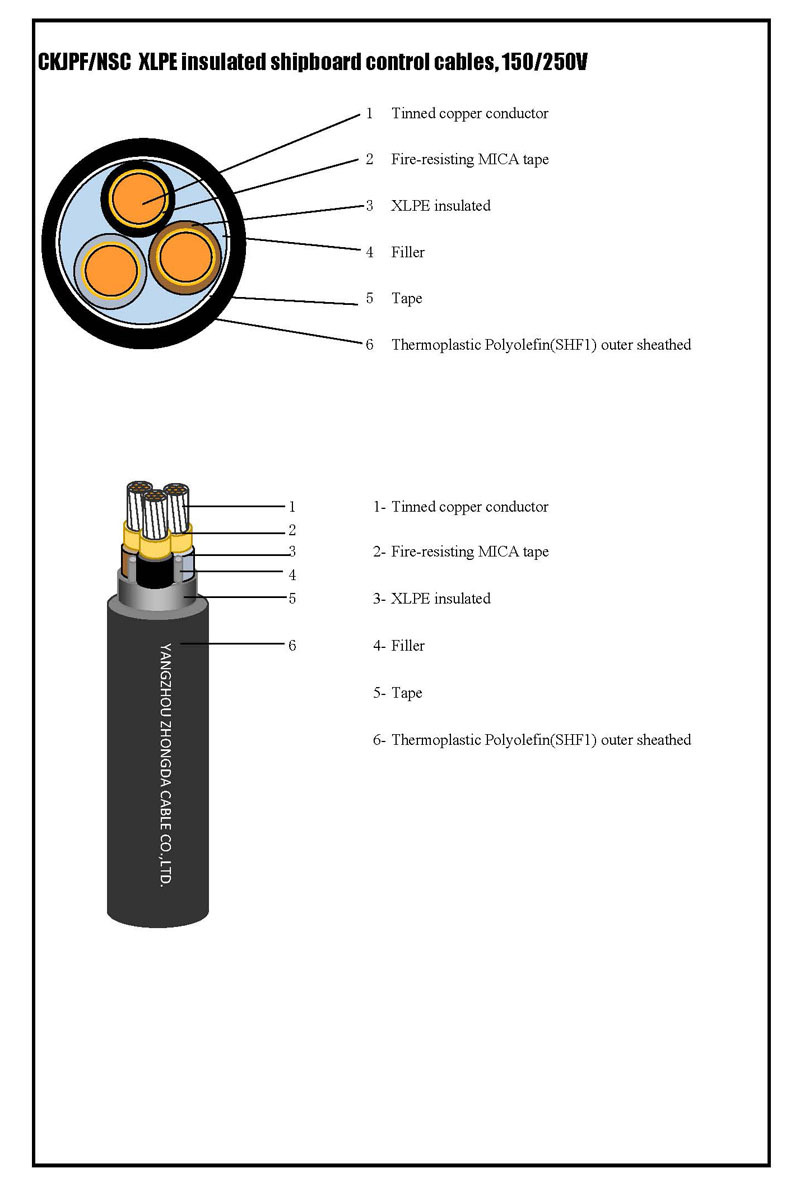

CKJPF/NSC
Shipboard control cable
|
Construction |
Code Letter |
Material or requirements |
|
Shipboard control cable |
CK |
- |
|
Conductor (1) |
- |
Stranded or tinned copper wire |
|
Insulation (2) |
J |
Cross-linked polyethylene (XLPE) |
|
Filler and tape (3) |
- |
Non-hygroscopic material |
|
Outer sheath (4) |
V、PF |
Polyvinyl chloride (PVC) or Thermoplastic polyolefin (PO) |
|
Fire resistant |
N |
Fire resistant |
|
Flame retardant |
S |
Bunched flame retardant |
|
Low smoke and halogen free |
C |
Low smoke, halogen free and low toxicity |
|
Low smoke and halogen free |
A |
Smoke, halogen and toxicity |
Standards applied
Construction：IEC60092-376
Conductor：IEC60228 Class 2, Class 5
Insulation：IEC60092-351
sheathed：IEC60092-359
Flame Retardant：IEC60332-3-22
Fire resistant: IEC60331-1/2/21
Smoke Density：IEC61034
Halogen Index：IEC60754
Cores identification
Print white number on black core
Outer sheath color
Black
Main characteristics
Operating temperature：-15℃～+90℃
Rated voltage：150/250V
Test voltage：1.5kV/5min
Flame spread test on bunched cable: Cat. A
Smoke density of completed cable: ≥60%
Application
The cable is mainly intended for shipboard and offshore building of control system.
