CHJV82-SA CHJV92-SA

型号:

关键词:

所属分类:

产品描述

Brief product description and advantages
1: XLPE insulated, 150/250V
2: Armoured cable, flame retardant
3: SHF1,PVC sheath

Brand ZhongDa
Model Communication Marine Cable
Sheath SHF1 or PVC
Number of cores 1 Pair to 37 Pairs
Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc


Custom attributes
Type  150/250V communication marine cable
Conductor  tinned copper or bare copper
Insulation  XLPE
Screen or Armor   tinned copper wire braided or galvanized steel wire braided
Sheath  SHF1 or PVC
Color   black, grey
Standards applied  IEC60092
Operating temperature -15℃ to +90℃
Certificate  ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS

The delivery period is 7-30 days
Fumigation Wooden Drum, 200M/ drum, 500M/ drum

CHJV82/SA 150/250V

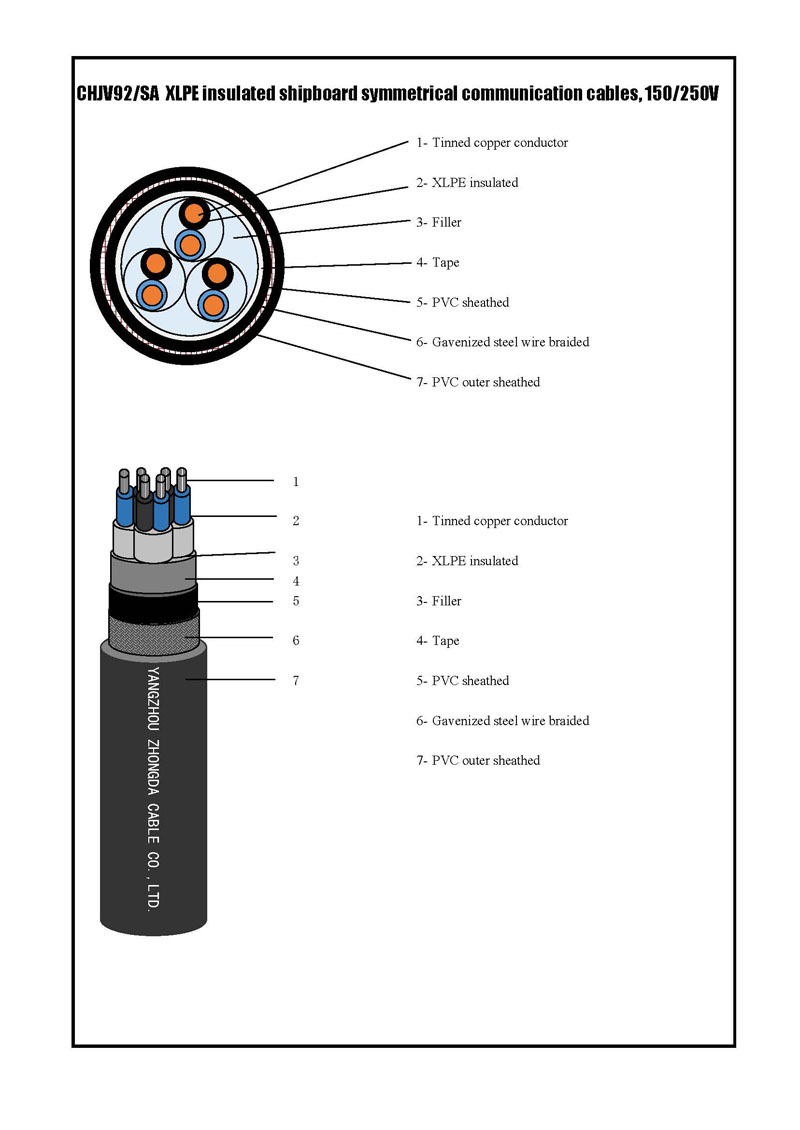

CHJV92/SA 150/250V
CHJPF86/SC150/250V
CHJPF96/SC 150/250V

SHIPBOARD COMMUNICATION CABLE

Construction

Code Letter

Material or requirements

Shipboard communication cable

CH

-

Conductor (1)

-

Stranded copper wire

Insulation (2)

J

Cross-linked polyethylene (XLPE)

Filler and tape (3)

-

Non-hygroscopic material

Inner sheath (4)

PF or V

Thermoplastic polyolefin (PO) or
  Polyvinyl chloride (PVC)

Screen or Armor (5)

8 or 9

Tinned copper wire braided or Galvanized steel wire braided

Outer sheath (6)

2 or 6

Polyvinyl chloride (PVC) or Thermoplastic polyolefin (PO)

Flame retardant

S

Bunched flame retardant

Low smoke and halogen free

C

Low smoke, halogen free and low toxicity

Low smoke and halogen free

A

Smoke, halogen and toxicity

Standards applied
Construction:IEC60092-376
Conductor:IEC60228 Class 2, Class 5
Insulation:IEC60092-351
sheathed:IEC60092-359
Flame Retardant:IEC60332-3-22
Smoke Density:IEC61034
Halogen Index:IEC60754

Cores identification
Pair unit: Black, White
Triple unit: Black, White, Red
Quad unit: Black, White, Red, Blue
Unit cores: Print unit number on cores

Outer sheath color
Black

Main characteristics
Operating temperature:-15℃~+90℃
Rated voltage:150/250V
Test voltage:1.5kV/5min
Flame spread test on bunched cable: Cat. A
Smoke density of completed cable: ≥60%

Application
The cable is mainly intended for shipboard and offshore building of telecommunication, computer and information proceeding unit.
