产品描述

Brief product description and advantages

1: XLPE insulated, 150/250V

2: armoured cable, flame retardant

3: SHF1, SHF2 sheath

4: metallic tape and drain wire

Brand ZhongDa

Model Communication Cable Screen Cable

Sheath SHF1 or SHF2

Number of cores 1 Pair to 37 Pairs

Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes

Type 150/250V Communication Cable

Conductor Tinned copper or bare copper

Indivdual screen Metallic tape and drain wire

Screen or Armor Tinned copper wire braided or galvanized steel wire braided

Color Black,Grey

Standards applied IEC60092

Operating temperature -15℃ to +90℃

Certificate ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS

The delivery period is 7-30 days

Fumigation Wooden Drum, 200M/ drum, 500M/ drum

CHJP96/SC 150/250V

CHJP95/SC 150/250V

CHJP86/SC 150/250V

CHJP85/SC 150/250V

SHIPBOARD COMMUNICATION CABLE

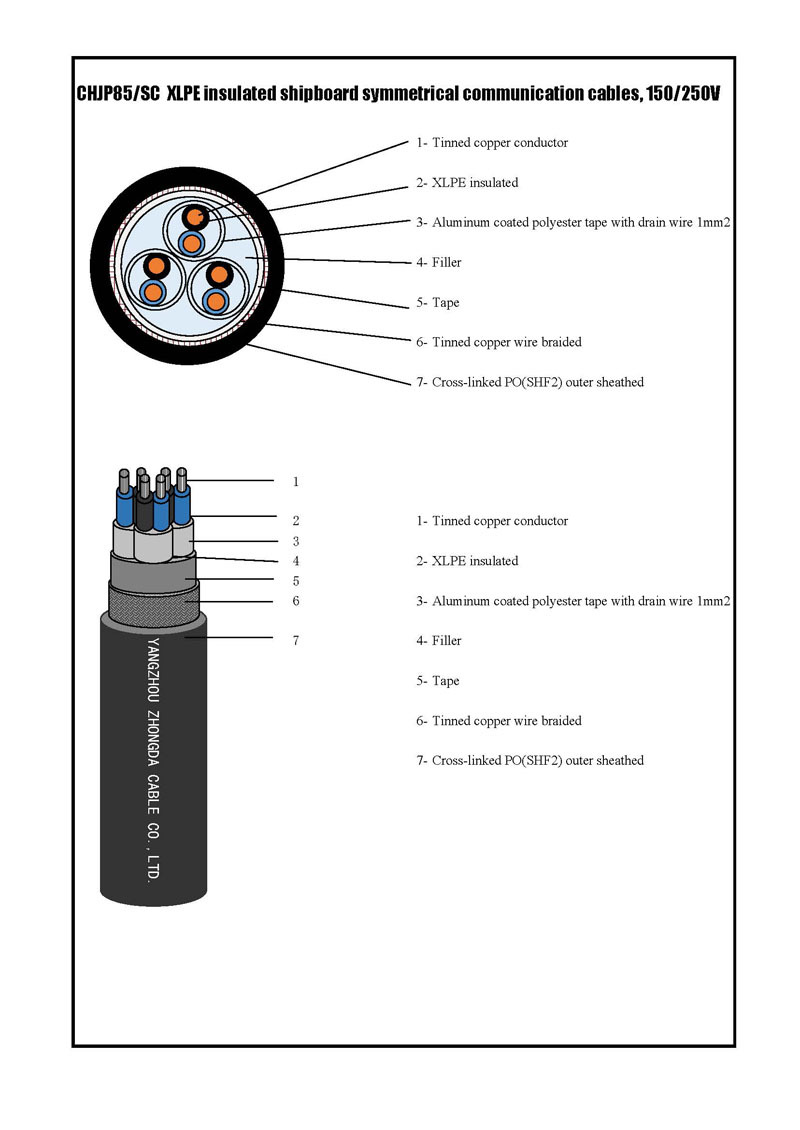

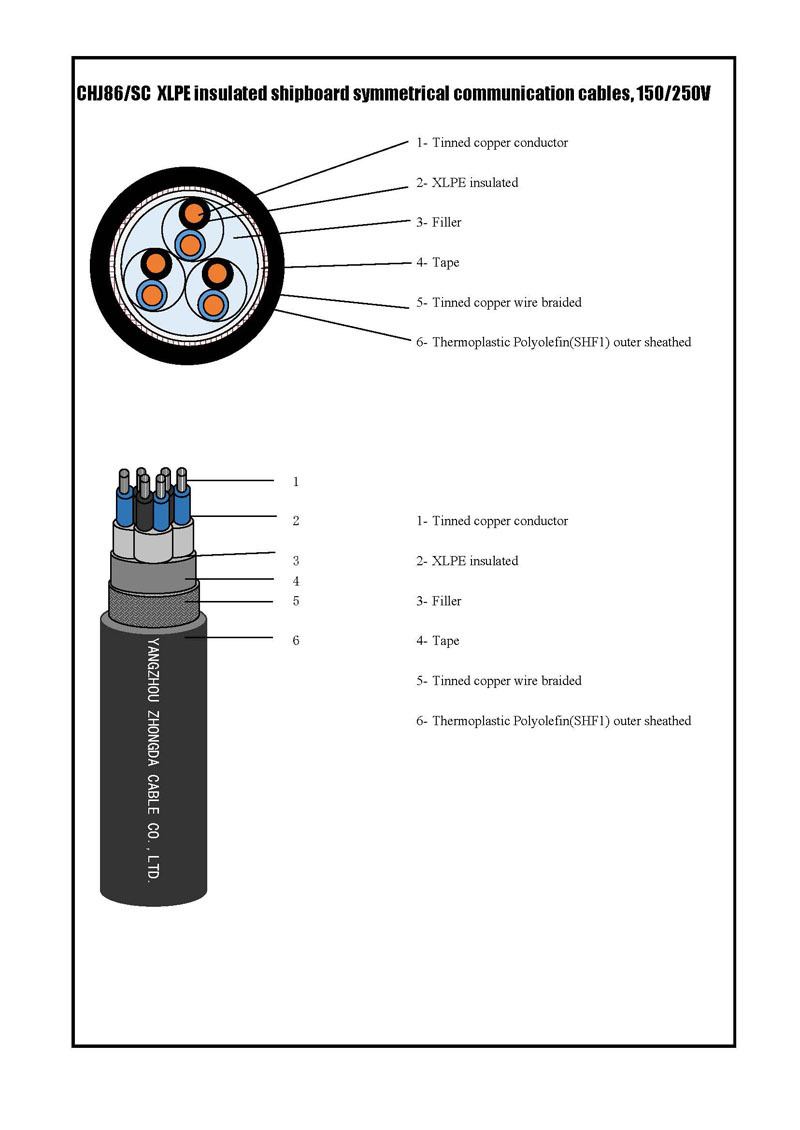

Construction	Code Letter	Material or requirements
Shipboard communication cable	CH	-
Conductor (1)	-	Stranded copper wire
Insulation (2)	J	Cross-linked polyethylene (XLPE)
Indivdual screen (3)	P	Metallic tape and drain wire
Filler and tape(4)	-	Non-hygroscopic material
Armor (5)	8 or 9	Tinned copper wire braided or Galvanized steel wire braided
Outer sheath (6)	5 or 6	Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO)
Flame retardant	S	Bunched flame retardant
Low smoke and halogen free	C	Low smoke, halogen free and low toxicity
