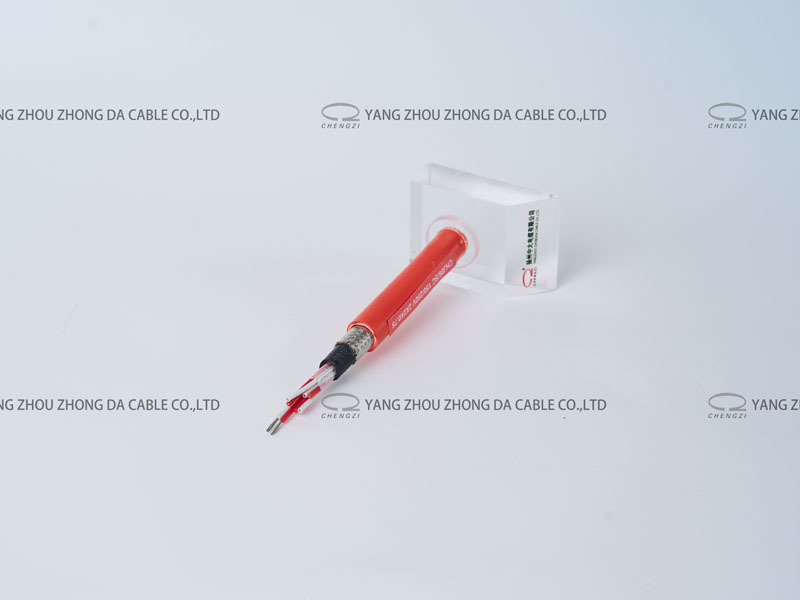

Brief product description and advantages
1: XLPE insulated, 150/250V
2: armoured cable, fire resistant
3: SHF1 SHF2 sheath
Brand ZhongDa
Model Communication Marine Cable Fire resistant
Sheath SHF1 SHF2
Number of cores 1 Pair to 37 Pairs
Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc
Custom attributes
Type 150/250V communication marine cable
Conductor tinned copper or bare copper
Insulation XLPE
Screen or Armor tinned copper wire braided or galvanized steel wire braided
Sheath SHF1 SHF2
Color black,grey
Standards applied IEC60092
Operating temperature -15℃ to +90℃
Certificate ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS
The delivery period is 7-30 days
Fumigation Wooden Drum, 200M/ drum, 500M/ drum
CHJ85/NSC 150/250V
CHJ86/NSC 150/250V
CHJ95/NSC 150/250V
CHJ96/NSC 150/250V
SHIPBOARD COMMUNICATION CABL
|

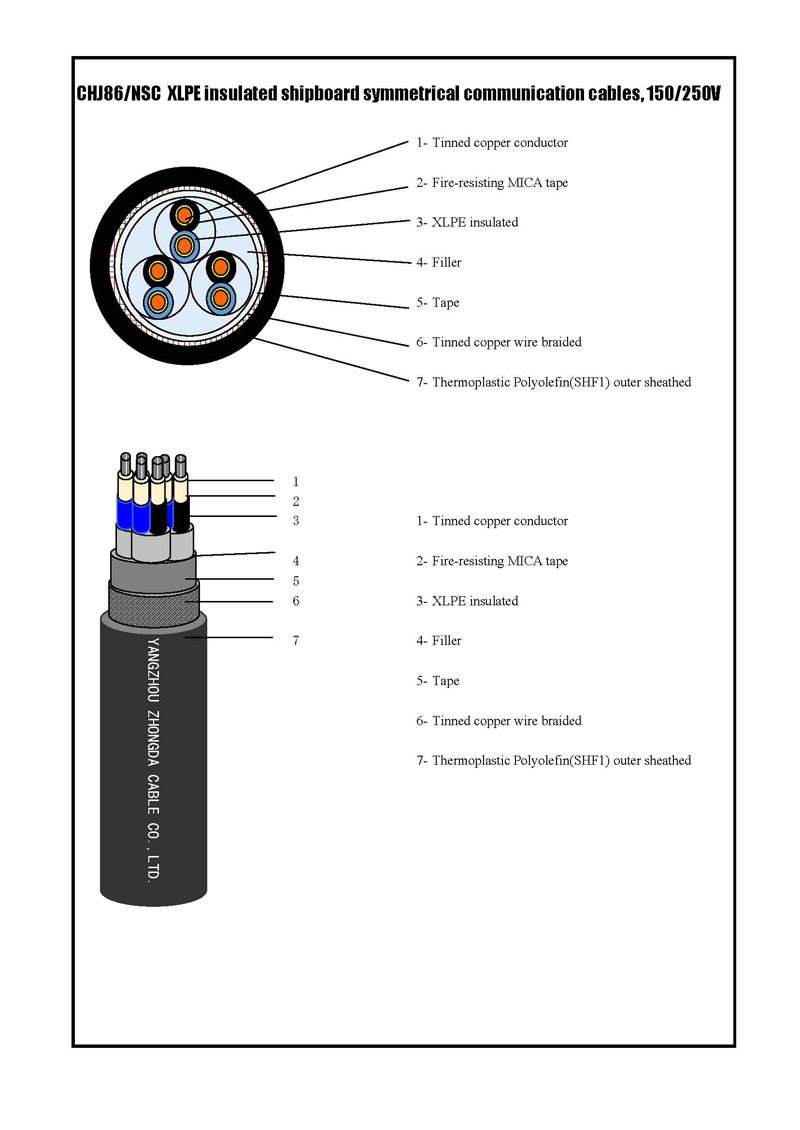

Construction
|
Code Letter
|
Material or requirements
|
|
Shipboard communication cable
|
CH
|
-
|
|
Conductor (1)
|
-
|
Stranded copper wire
|
|
Fire resistant tape(2)
|
-
|
Mica-tap
|
|
Insulation (3)
|
J
|
Cross-linked polyethylene (XLPE)
|
|
Filler and tape 4)
|
-
|
Non-hygroscopic material
|
|
Screen or Armor (5)
|
8 or 9
|
Tinned copper wire braided or Galvanized steel wire braided
|
|
Outer sheath (6)
|
5 or 6
|
Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO)
|
|
Fire resistant
|
N
|
Fire resistant
|
|
Flame retardant
|
S
|
Bunched flame retardant
|
|
Low smoke and halogen free
|
C
|
Low smoke, halogen free and low toxicity
|
Standards applied
Construction：IEC60092-376
Conductor：IEC60228 Class 2, Class 5
Insulation：IEC60092-351
sheathed：IEC60092-359
Fire resistant: IEC60331-1/2/21
Flame Retardant：IEC60332-3-22
Smoke Density：IEC61034
Halogen Index：IEC60754
Cores identification
Pair unit: Black, White
Triple unit: Black, White, Red
Quad unit: Black, White, Red, Blue
Unit cores: Print unit number on cores
Outer sheath color
Black
Main characteristics
Operating temperature：-15℃～+90℃
Rated voltage：150/250V
Test voltage：1.5kV/5min
Flame spread test on bunched cable: Cat. A
Smoke density of completed cable: ≥60%
Application
The cable is mainly intended for shipboard and offshore building of telecommunication, computer and information proceeding unit.
