产品描述

Brand ZhongDa Marine Power Cable

Low Voltage Marine Cable

Sheath PVCor SHF1 or SHF2

1 Core to 37 cores

Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes

Type low voltage

Conductor copper conductor

Screen or Armor unarmoured

Color black,grey,blue

Standards applied IEC60092

Operating temperature -15℃ to +90℃

Certificate ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS

Model Number CJV CJPF CJPJ SC

Remark marine power cable

Voltage Grade low voltage

marine power cable

CJPJ/SC 0.6/1 kv

CJPF/SC 0.6/1 kv

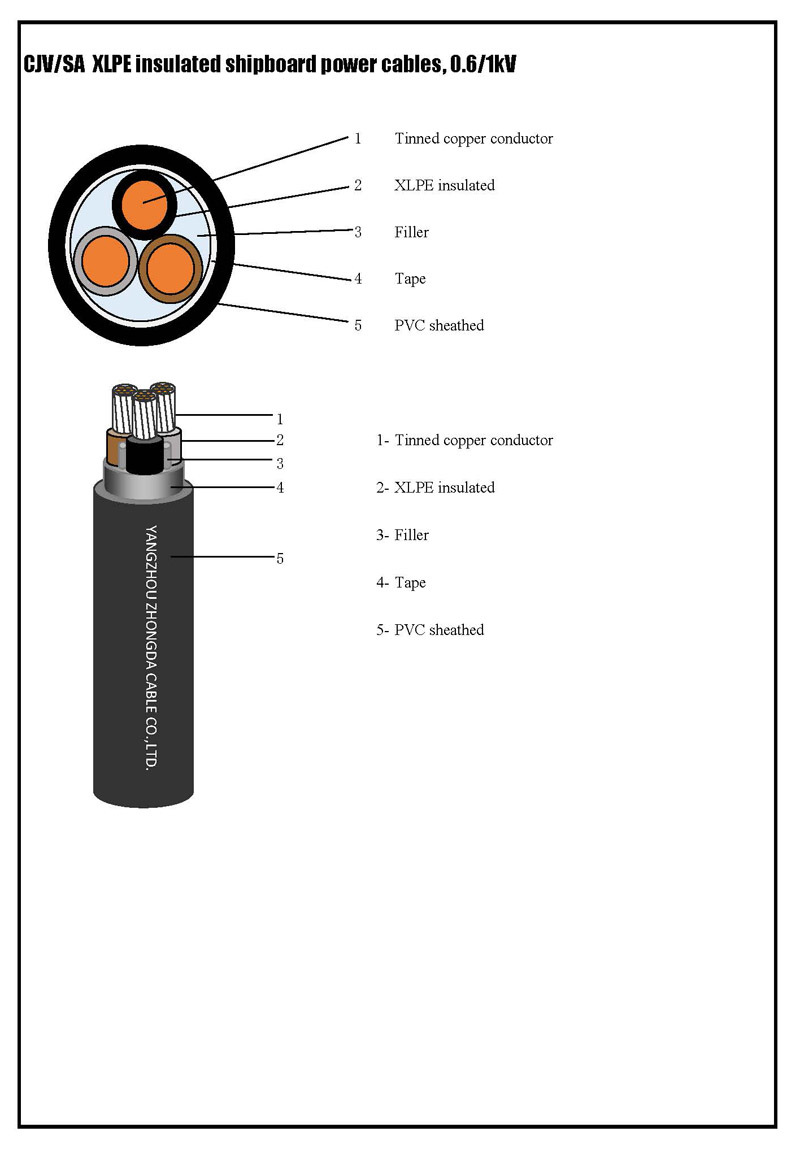

The CJV/SC 0.6/1 kv

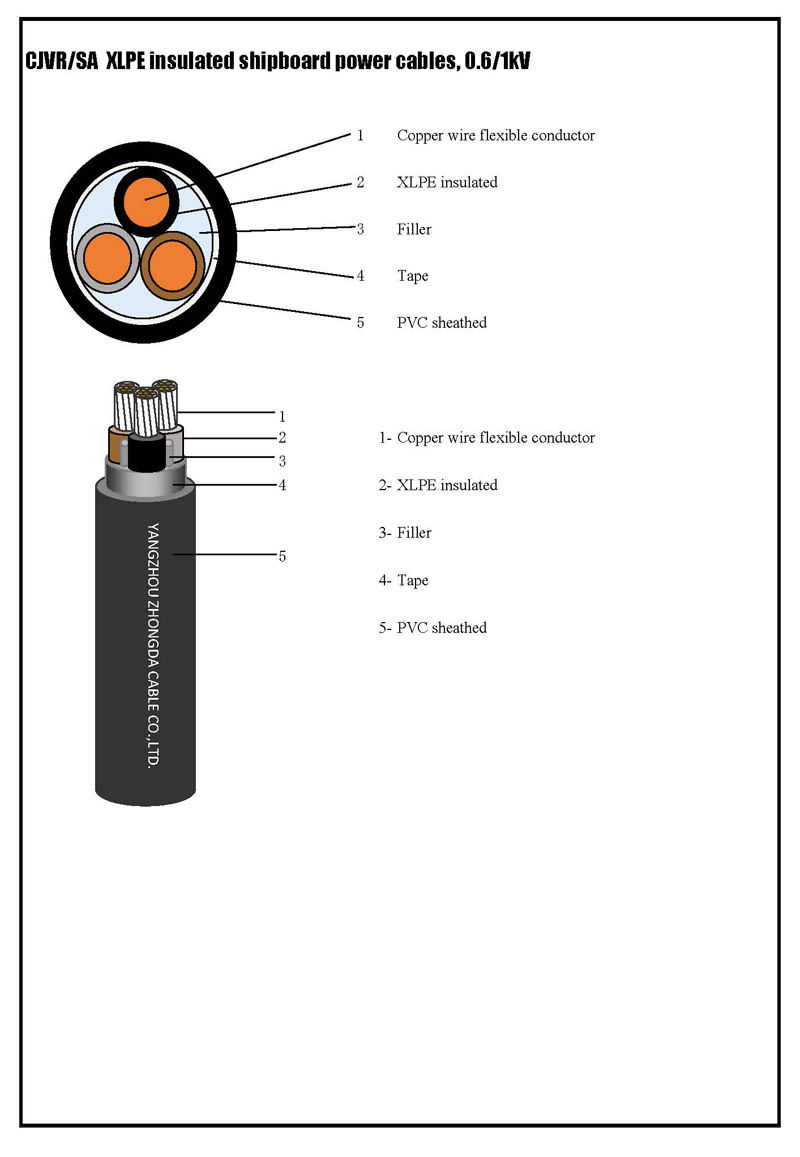

CJVR/SC 0.6/1 kv

Shipboard low voltage power cable

Construction	Code Letter	Material or requirements
Shipboard power cable	C	-
Conductor (1)	-	Stranded copper wire
Insulation (2)	J	Cross-linked polyethylene (XLPE)
Filler and tape (3)	-	Non-hygroscopic material
Outer sheath (4)	PJ or PF or V	C
Special code	R	Flexible conductor
Flame retardant	S	Bunched flame retardant
Low smoke and halogen free	C	Low smoke, halogen free and low toxicity
Low smoke and halogen free	A	Smoke, halogen and toxicity
