CJV-NSA, CJVR-NSA, CJPF-NSC, CJPJ-NSC

型号:

关键词:

所属分类:

产品描述

Brief product description and advantages
cu/xlpe/pvc cable
1: XLPE insulated, Low voltage,0.6/1kV
2: unarmoured cable,fire resistant
3: PVC,SHF1,SHF2 sheath

Brand ZhongDa CU/XLPE/PVC cable
Model described.properties of cu / / PVC cable
Sheath PVCor SHF1 or SHF2
1 Core to 37 cores
Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes
Type  cu/xlpe/pvc cable
Conductor  copper conductor
Insulation  XLPE
Screen or Armor   unarmoured
Sheath PVC or SHF1 or SHF2
Color   black,orange
Standards applied  IEC60092
Operating temperature -15℃ to +90℃
Certificate  ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS
Model Number CJV CJVR CJPF CJPJ NSC
Remark  cu/xlpe/pvc cable
Voltage Grade  low voltage

cu/xlpe/pvc cable
The CJV/NSC 0.6/1 kv
CJVR/NSC 0.6/1 kv
CJPFNSC 0.6/1 kv
CJPJ/NSC 0.6/1 kv
Shipboard low voltage power cable

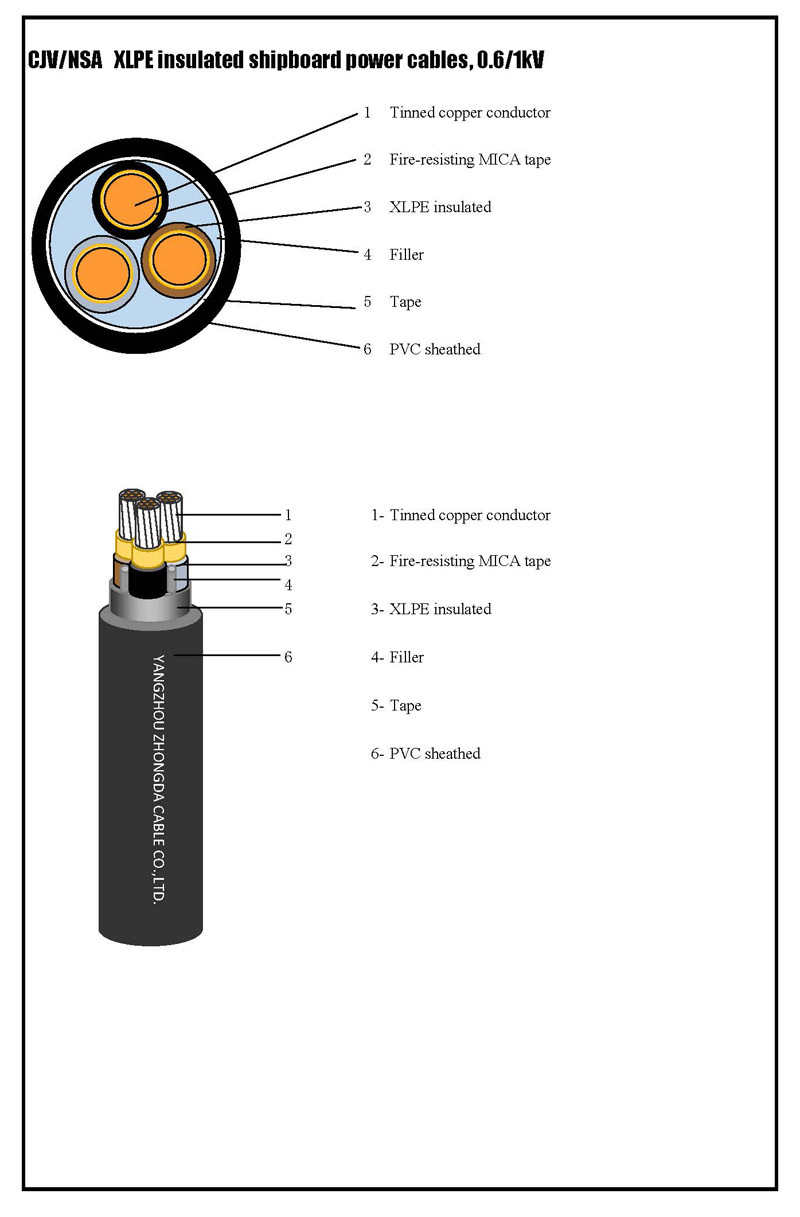

Construction

Code Letter

Material or requirements

Shipboard power cable

C



Conductor (1)

-

Stranded or tinned copper wire

Fire resistant tape(2)

-

Mica-tape

Insulation (3)

J

Cross-linked polyethylene (XLPE)

Filler and tape (4)

-

Non-hygroscopic materia

Outer sheath (5)

PJ or PF or V

Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO) or
  Polyvinyl chloride (PVC)

Special code

R

Flexible conductor

Fire resistant

N

Fire resistant

Flame retardant

S

Bunched flame retardant

Low smoke and halogen free

C

Low smoke, halogen free and low toxicity

Low smoke and halogen free

A

Smoke, halogen and toxicity

Standards applied
Construction:IEC60092-353
Conductor:IEC60228 Class 2, Class 5
Insulation:IEC60092-351
Sheathed:IEC60092-359
Fire resistant: IEC60331-1/2/21
Flame Retardant:IEC60332-3-22
Smoke Density:IEC61034
Halogen Index:IEC60754

Cores identification
1 core: Black
2 cores: Brown, Blue
3 cores: Black, Brown, Grey
4 cores: Black, Brown, Grey, Blue
5 cores and more: Print white number on black core
Earth core: Yellow/Green
Outer sheath color
Black
Main characteristics
Operating temperature:-15℃~+90℃
Rated voltage:0.6/1kV
Test voltage:3.5kV/5min
Flame spread test on bunched cable: Cat. A
Smoke density of completed cable: ≥60%
Application
The cable is mainly intended for shipboard and offshore building to transmit electrical power, lighting and control system.
