产品描述

Brief product description and advantages

xlpe swa pvc cable

1: XLPE insulated, Low voltage,0.6/1kV

2: armoured cable, flame rRetardant

3: PVC,SHF1,SHF2 inner sheath

ZhongDa XLPE SWA PVC Cable

Model XLPE SWA PVC Cable

Sheath PVCor SHF1 or SHF2

1 Core to 37 cores

Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes

Type xlpe swa pvc cable

Conductor copper conductor

Screen or Armor tinned copper wire braided or galvanized steel wire braided

Color black,grey,blue

Standards applied IEC60092

Operating temperature -15℃ to +90℃

Certificate ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS

Model Number CJV80 CJV90 CJPF80 CJPF90

Remark xlpe swa pvc cable

Voltage Grade low voltage

The delivery period is 7-30 days

Fumigation Wooden Drum, 200M/ drum, 500M/ drum

xlpe swa pvc cable

CJPJ80 / SC 0.6/1 kv

CJPJ90 / SC 0.6/1 kv

CJPF80 / SC 0.6/1 kv

CJPF90 / SC 0.6/1 kv

CJV80 / SC 0.6/1 kv

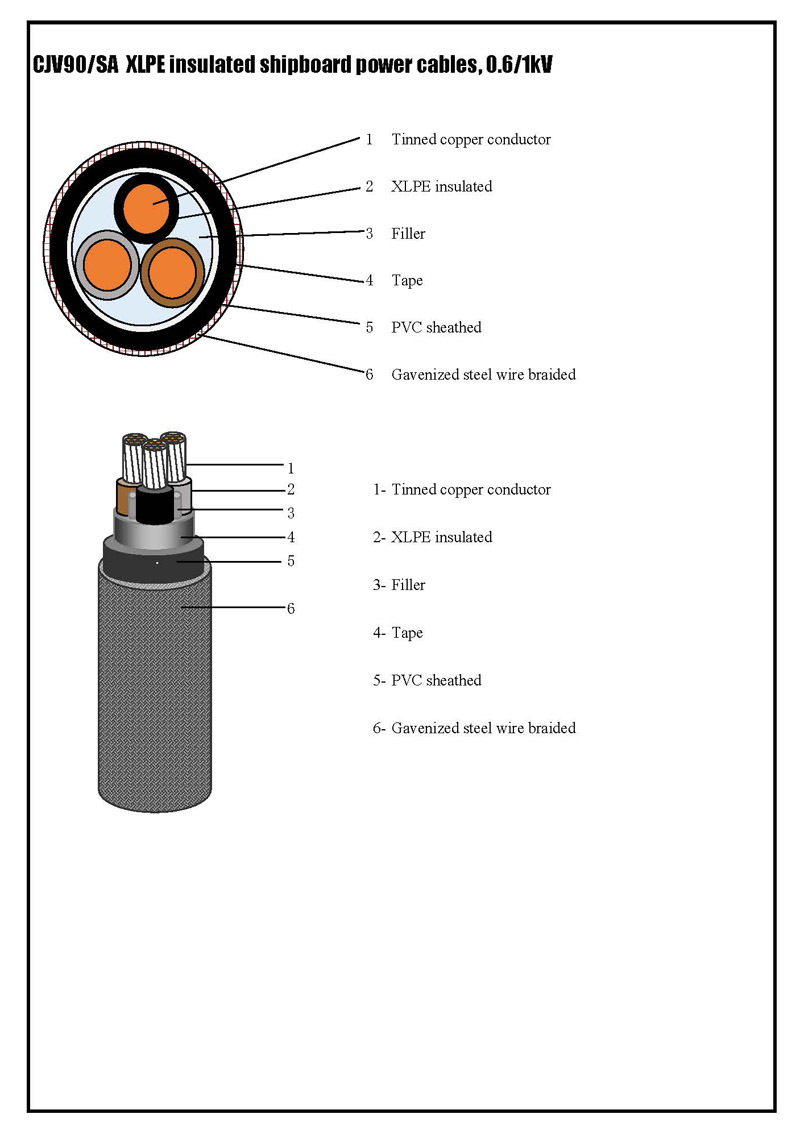

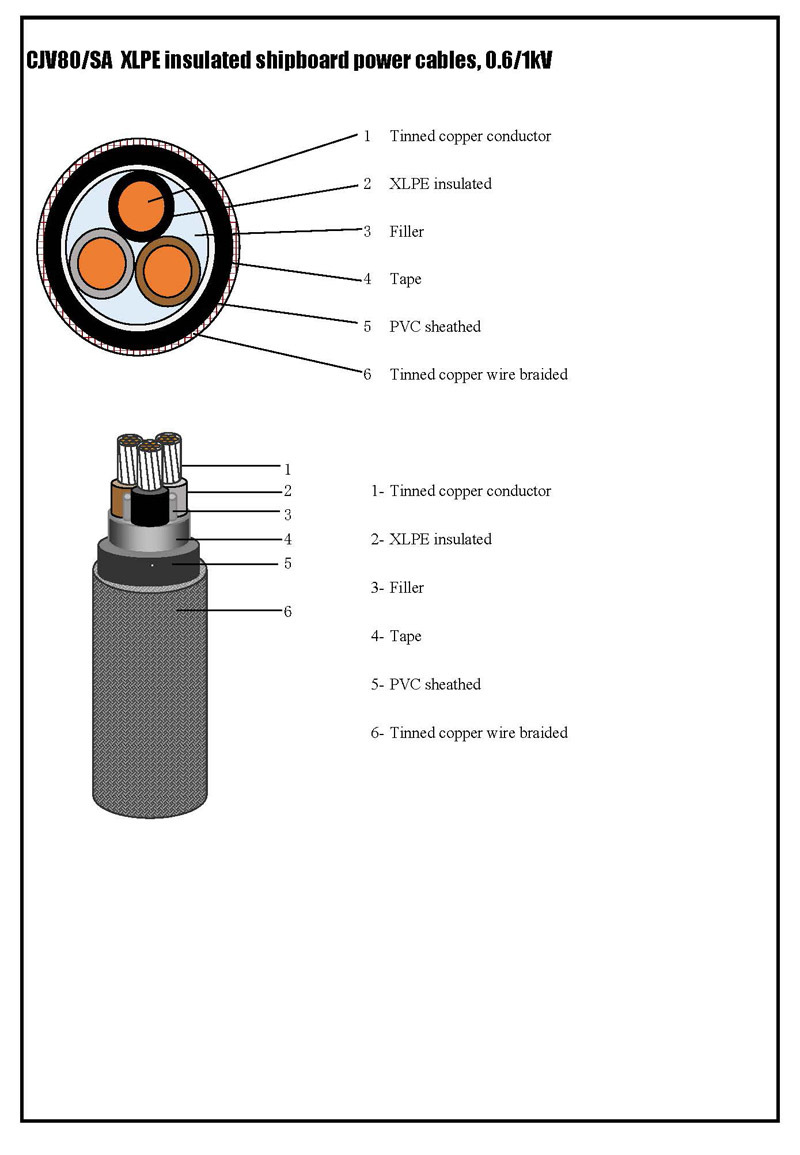

Shipboard low voltage power cable

Construction	Code Letter	Material or requirements
Shipboard power cable	C	-
Conductor (1)	-	Stranded copper wire
Insulation (2)	J	Cross-linked polyethylene (XLPE)
Filler and tape (3)	-	Non-hygroscopic material
Inner sheath (4)	PJ or PF or V	Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO) or Polyvinyl chloride (PVC)
Screen or Armor (5)	8 or 9	Tinned copper wire braided or Galvanized steel wire braided
Outer sheath	0	No outer sheath
Flame retardant	S	Bunched flame retardant
Low smoke and halogen free	C	Low smoke, halogen free and low toxicity
Low smoke and halogen free	A	Smoke, halogen and toxicity
