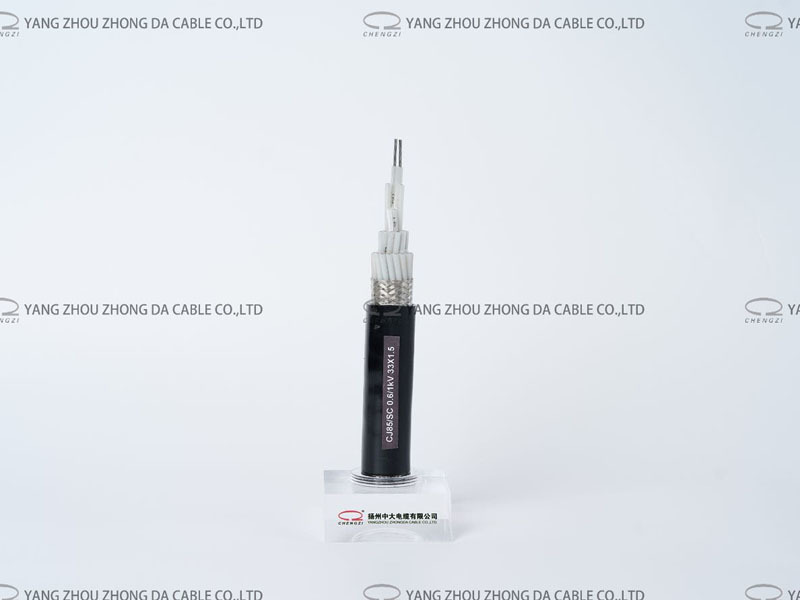

CJ86-SC, CJ85-SC

型号：

关键词：

所属分类：

产品咨询：

产品描述

Brief product description and advantages

CJ86 xlpe insulated power cables

1: low voltage, including 0.6/1 kv

2: armoured marine cable, flame retardant

3: SHF1,SHF2 sheath

ZhongDa XLPE Insulated power cables

Xlpe insulated power cables

Sheath SHF1 or SHF2

1 Core to 37 cores

Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes

Type xlpe insulated power cables

Conductor copper conductor

Screen or Armor tinned copper wire braided or galvanized steel wire braided

Color black,grey,blue

Standards applied IEC60092

Operating temperature -15℃ to +90℃

Certificate ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS

Model Number CJ86 CJ85 SC

Remark xlpe insulated power cables

Voltage Grade low voltage

Described.properties insulated power cables

CJ86 / SC 0.6/1 kv

CJ85 / SC 0.6/1 kv

Shipboard low voltage power cable

Construction	Code Letter	Material or requirements
Shipboard power cable	C	-
Conductor (1)	-	Stranded copper wire
Insulation (2)	J	Cross-linked polyethylene (XLPE)
Filler and tape (3)	-	Non-hygroscopic material
Screen or Armor (4)	8	Tinned copper wire braided
Outer sheath (5)	5 or 6	Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO)
Flame retardant	S	Bunched flame retardant
Low smoke and halogen free	C	Low smoke, halogen free and low toxicity

cores identificateion	One core	Black
	Two cores	Brown, Blue
	Three cores	Black, Brown, Grey
	Four cores	Black, Brown, Grey, Blue
	Five cores and more	Print white number on black core
	Earth core	Yellow/Green
main characteristics	Operating temperature	-15°C~+90°C
	Rated voltage	0.6/1kV
	Test voltage	3.5kV/5min
Application	The cable is mainly intended for shipboard and offshore building to transmit electrical power, lighting and control system.
