产品描述

Brief product description and advantages

marine shipboard power cable

1: XLPE insulated, Low voltage,0.6/1kV

2: armoured cable, fire resistant

3: PVC,SHF1,SHF2 inner sheath

ZhongDa Marine Shipboard Power Cable

Model Marine Shipboard Power Cable

Sheath PVC or SHF1 or SHF2

1 Core to 37 cores

Warship (WARSHIP) Ship, Offshore oil, Port,military industry etc

Custom attributes

Type marine shipboard power cable

Conductor copper conductor

Screen or Armor tinned copper wire braided or galvanized steel wire braided

Color black,grey,blue

Standards applied IEC60092

Operating temperature -15℃ to +90℃

Certificate ABS,BV,CCS,DNV,GL,KR,LR,NK,RINA,RS

Model Number CJV80 CJV90 CJPF80 NSC

Remark marine shipboard power cable

Voltage Grade low voltage

The delivery period is 7-30 days

Fumigation Wooden Drum, 200M/ drum, 500M/ drum

marine shipboard power cable

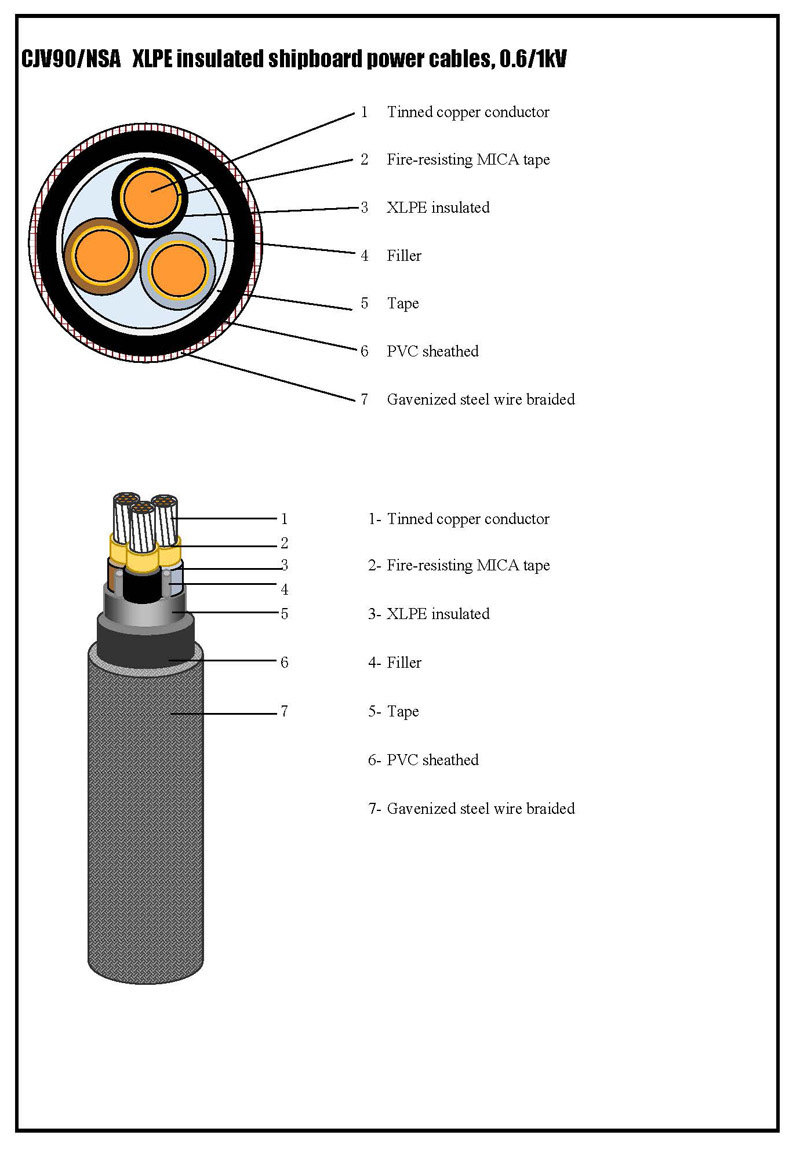

CJV90 / NSA 0.6/1 kv

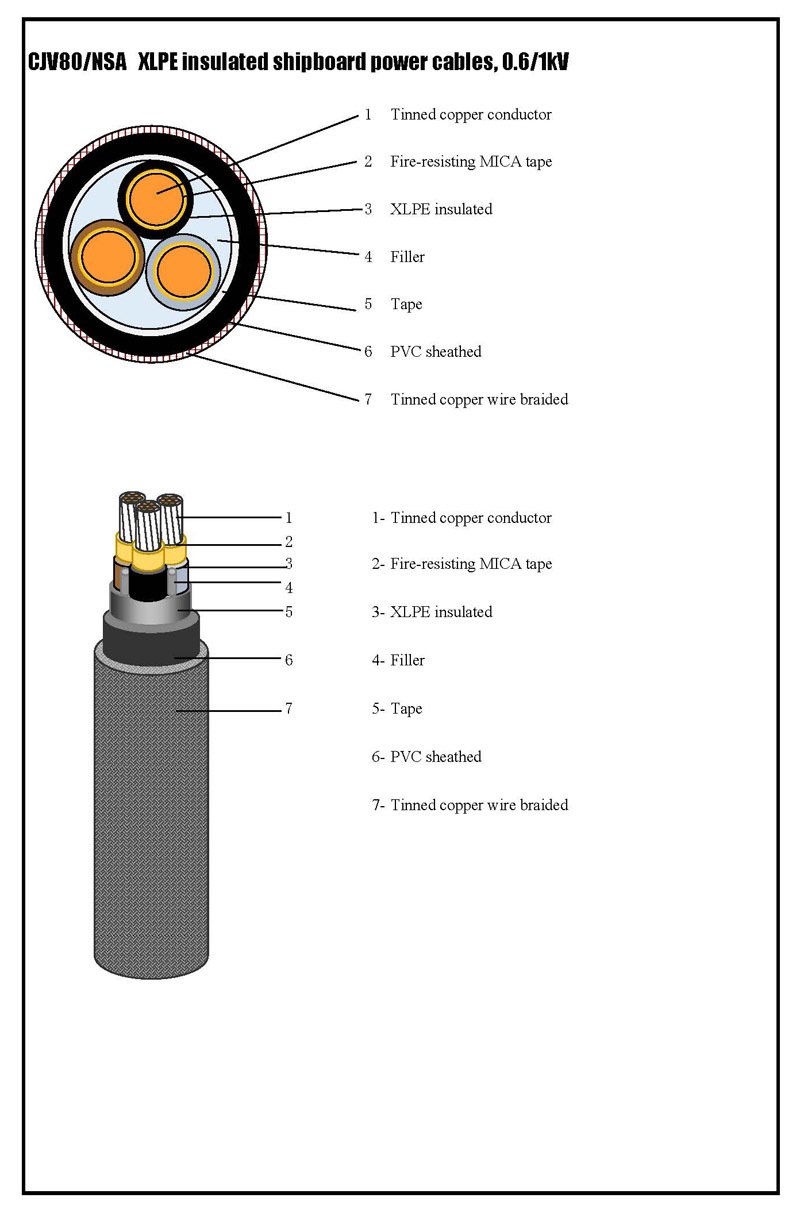

CJV80 / NSA 0.6/1 kv

CJPJ90 / NSC 0.6/1 kv

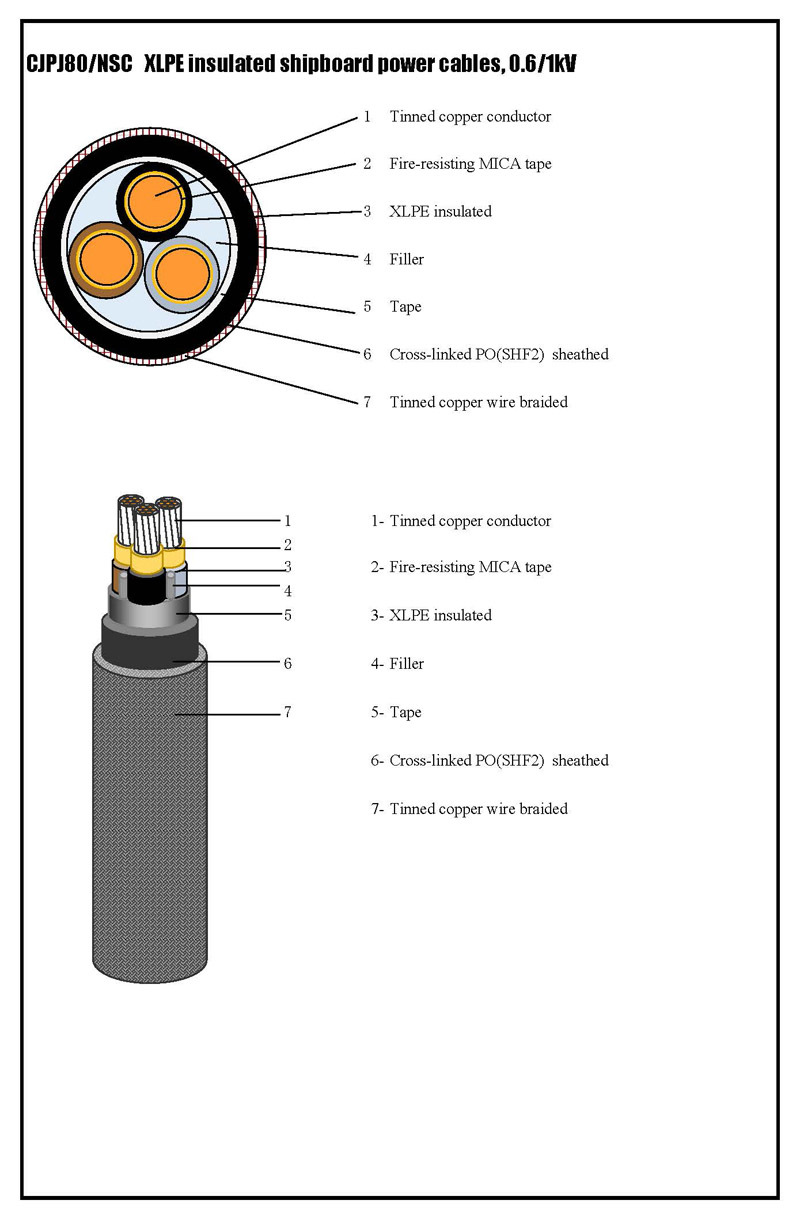

CJPJ80 / NSC 0.6/1 kv

CJPF90 / NSC 0.6/1 kv

Shipboard low voltage power cable

Construction	Code Letter	Material or requirements
Shipboard power cable	C
Conductor (1)	-	Stranded or tinned copper wire
Fire resistant tape(2)	-	Mica-tape
Insulation (3)	J	Cross-linked polyethylene (XLPE)
Filler and tape (4)	-	Non-hygroscopic materia
Inner sheath (5)	PJ or PF or V	Thermoset polyolefin (XLPO) or Thermoplastic polyolefin (PO) or Polyvinyl chloride (PVC)
Screen or Armor (6)	8 or 9	Tinned copper wire braided or Galvanized steel wire braided
Outer sheath	0	No outer sheath
Fire resistant	N	Fire resistant
Flame retardant	S	Bunched flame retardant
Low smoke and halogen free	C	Low smoke, halogen free and low toxicity
Low smoke and halogen free	A	Smoke, halogen and toxicity
